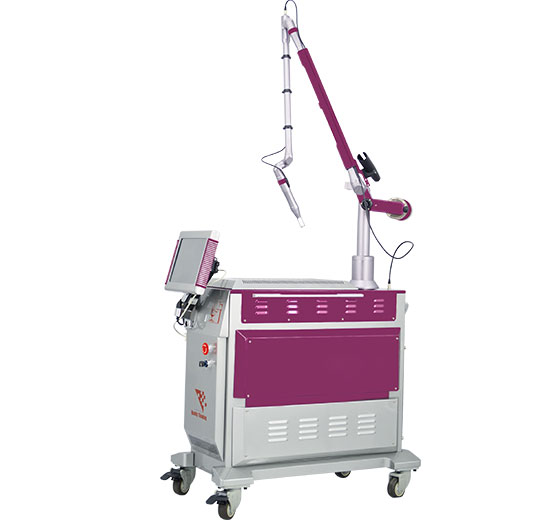

Q-switched ND:Yag laser

For skin toning by treatment of pigmented lesions and tattoo removal. Q-Switched ND YAG Laser is proven to be the most effective way to remove pigmented lesions and tattoos, which emits light in a particular way in short and sharp pulses to break down the pigments of pigmented lesions and tattoos.


Pmise-Q01 / Pmise-Q02

Online InquiryGet Price


The Q-switched ND:Yag laser delivers light of specific wavelength in high peak energy pulse, hence the light penetrates into the tissue only for a nanosecond. The light is absorbed by the pigmentation and results in an instantaneous blast that is light blasting principle. The pigmentation particles are shattered into fragments, some can be bounced out of the skin and others can be split into tiny particles that can be engulfed by phagocytes and then eliminated by the lymphatic system.

This light energy is measured in nanometres (nm) and is emitted at frequency of 532nm or 1064 nm. The 1064nm is for treatment of blue or black ink pigment in the skin, this tip is slightly shorter and has around mirror inside. The 532nm tip is for treatment of red and brown pigment in the skin, ND YAG is a type of Q-switched laser which works best on red, blue and black pigments.

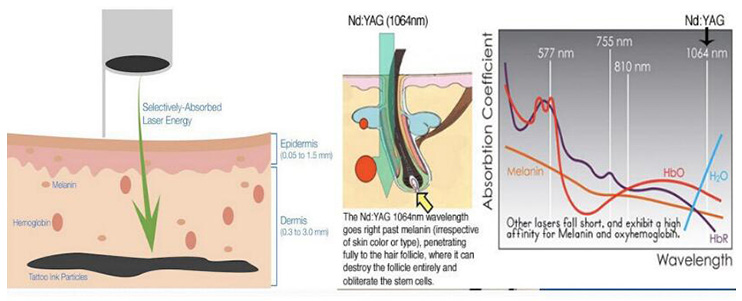

q switched nd yag laser treatment principle


  • Epidermal pigment: Body tattoo, eye line and brow taboo removal
  • Vessels disease: varicosity removal, capillary hemangioma
  • Laser facial: Oil control, skin rejuvenation, skin pore improvement
  • Dermal pigment: birthmark, coffee spot age pigment, freckle

nd yag laser before and after


1. "Top Hat" beam profile advantage: Enhanced treatment safety and efficacy by homogeneous distribution of energy; "Top Hat" beam profile minimizes epidermal damage; Tissue textural changes and the occurrence of scarring; A lack of an homogenizer might result in hot spots within the beam and increased risk of scarring.

2. Imported South Korea 7 joints arm: rate of energy loss < 13%.

3. Alarm protection system of water of flow and water temperature, protect people and machine against any risk at the first time.


  Pmise-Q01 Pmise-Q02
Laser Type Active Adjusting Active Adjusting
Wave Length 1064nm  532nm 1064nm  532nm
Power 1-800mj(stp) 1-800mj(stp)1-1600mj(PTP)1-1200mj(LTP1064)100-3000mj(LTP532nm)
Spot Size Mode Single Single pulse, Multi pulse, Long pulse
Diameter of Focal Spot 1-10mm Adjustable 1-10mm Adjustable
Pulse Width 0.1005ms-10.05ms 0.1005ms-10.05ms
Aiminng Power <=5mw <=5mw
Beam Transport Device Imported Korea 7 Joint Arm Imported Korea 7 Joint Arm
Aiming Beam Wave Length 635 nm 635 nm
Power Supply AC 220V±10%, 50Hz AC 220V±10%, 50Hz
Cooling System Air Cooling, Water Cooling System Air Cooling, Water Cooling System
Insurance Standard Max1OA Max1OA
Input Power 1200W 1200W
