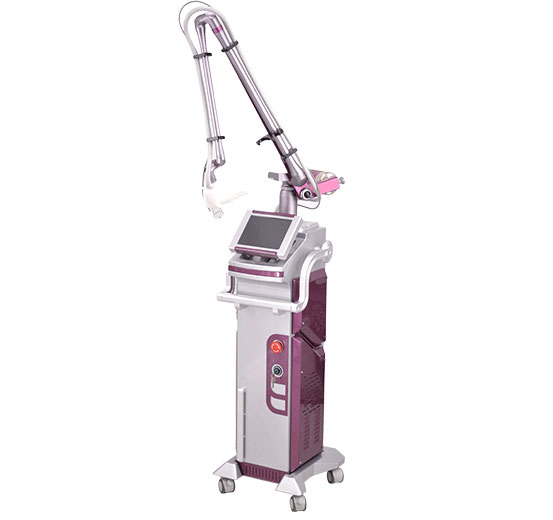

Fractional Co2 Laser

Pmise fractional co2 laser machine dramatically decrease scars, even deep ones, as well as repair damaged skin and improve skin tone. Treatment is free of complications and requires minimized downtime due to the technology and tailored treatment modes.



Online InquiryGet Price


After applied to the skin, the lattice array small beam generated by fractional laser will produce multiple tiny three-dimensional and cylindrical thermal damage zones, around which are normal tissues without damaging, hence, the corneocyte will crawl quickly to repair the damaged and make them heal rapidly. Besides, it can rearrange the proliferation of collagen fiber and elastic fiber, make the proportion of I, Ⅲ collagen fiber close to the normal one, change the tissue of pathological scar, soften the scar and restore its elasticity gradually. The main absorption group of fractional laser is water, which is also the primary component of the skin. Fractional laser can make the dermal collagen fibers be heated to contract and degenerate, enhance the injury healing within the dermis and enable the collagen deposit orderly, thus promoting the proliferation of collagen, improving skin elasticity and reducing scar.

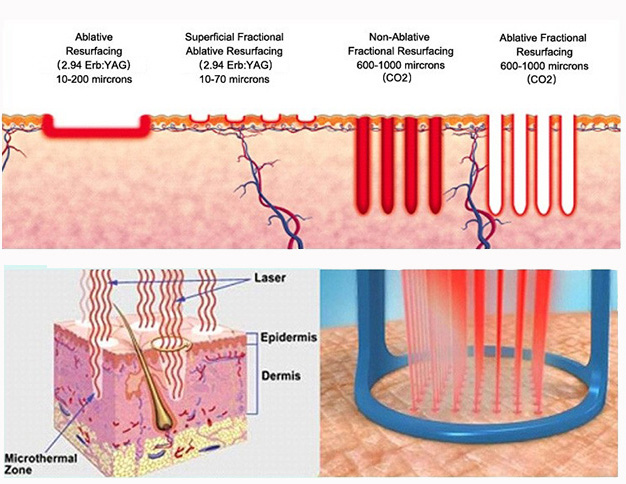

co2 treatment principle


  • Anti-aging, wrinkle removal, skin tightening
  • Remove various scars: burnt scar, surgical scar and trauma
  • Improves the sagging of the skin of the eyelids face and neck.
  • Reduces Stretch marks
  • Eliminates Pigmentation: freckles, aged spots, etc.
  • Reduces Rosacea, benign tumor, hemangioma
  • Promote Epidermal regeneration
  • Reduces acne, pockmarks

fractional co2 laser treatment before and after


1. Three modes of laser energy output are available: Ultra-Pulse, CW (Continuous Wave) and Fractional, providing a wide range of application.

2. Adopt RF-excited CO2 laser system of COHERENT, enabling the output quality more stable and service life longer (compared to ordinary CO2 laser installed with glass tubes)

3. Healing zone volume is adjustable, namely, the volume of spots is adjustable in a certain healing zone. Therapists can adjust the spot density/shape/size according to the needs of the healer.

4. Various spot volumes are suitable for different area of the body which maximally avoid the side-effect that results from the overlap of the spot, reduce the pain during treatment and satisfy different therapists unique request.

5. Red indicator light makes the operator's vision more clearly.

6. Large color touch screen is easy for operation.

7. Intelligent error reporting system ensures operating safety.


Laser Type RF-excited ion laser
Wave Length 10600nm
Power 1-30W adjustable
Operating Mode CW
Output Mode CW, Ultra pulse, Interval pulse
Spot Size Mode Single
Pulse Energy 8.3mJ-166mJ
Diameter of Focal Spot 100um-2000um
Pulse Width 0.1005ms-10.05ms
Scan Graphics Triangle/square/rectangle/diamond
Aiming Power <=5mw
Beam Transport Device Imported Korea 7 Joint Arm
Aiming Wave Length 635 nm
Number of Focal Spot (Square)36(6*6)144(12*12)
  576(24*24) (/cm2)
  ≈6.25% (144/cm2) ≈25% (576/cm2)
Area Calculation lcm*lcm 2cm*2cm 3cm*3cm
Pulse Duation lms-l00ms
Power Supply AC 220V±10%, 50Hz
Cooling System Air Cooling
Insurance Standard Max1OA
Input Power 600W


1. Highly Advanced Scanners for Maximum Versatility, Speed and Efficacy.

CPG Head for fast and precise tissue ablation and coagulation with consistent fluence. The overall effect of ablation and coagulation, either full or fractional, is the removal of skin and the stimulation of the body to replace it with newer, younger skin.. it is equipped with a special image generator (CPG) image generator that changes the light emission mode, can emit 50-80 micron focal spots through the high focusing mirror, and scan these focal spots up to six Array, suitable for different parts and different skin types, can range from covering the entire treatment area or just a fraction of it.

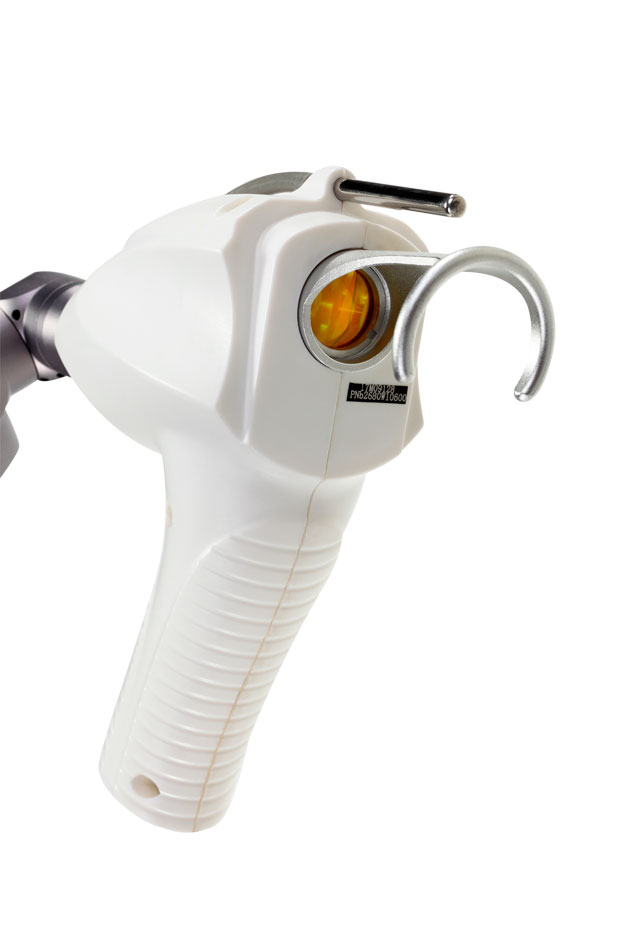

co2 laser CPG Head


2. Ultrapulse head and Continuous head:

Using carbon dioxide ultra-pulse to remove flesh, you can control the size and depth of the spot without leaving sputum and infection.

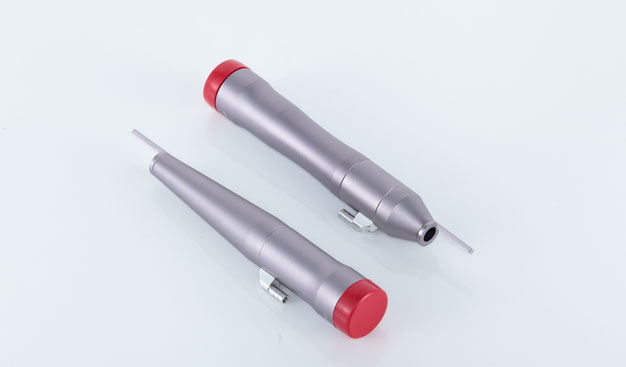

co2 laser Ultrapulse head and Continuous head


3. Vaginal Treatment heads:

Adopt humanized 360° professional treatment handpiece with adjustable depth, taking into account all angles of the treatment site, safe and gentle laser treatment, no pain and discomfort during the whole treatment with comfortable body feeling. It can be recovered in seven days after treatment.

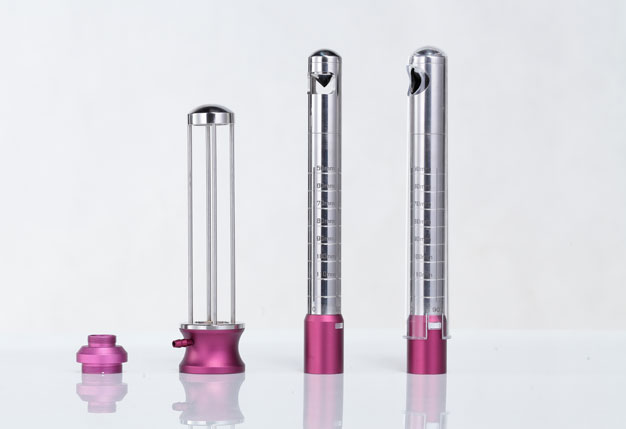

co2 laser Vaginal Treatment heads


4. 7-jointed arm light conduct:

South Korea imported, transmission efficiency is greater than 75%, more convenient operating, less costs.

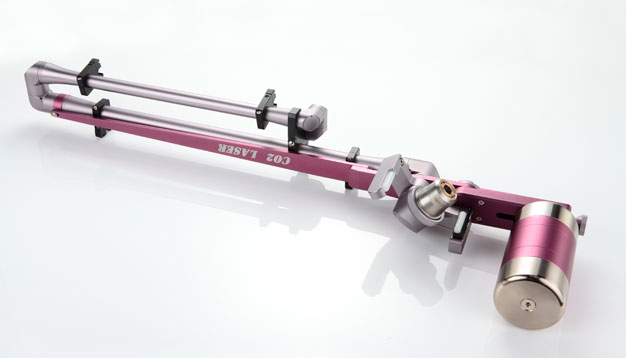

co2 laser 7-jointed arm light conduct


5. Spot adjuster:

Get a more stable laser, with a variety of spot areas required by the operator, to ensure consistent treatment results in the treatment area. More than 7+ shape more choices. Every shape can change the size.
