IPL (OPT Technology) Laser

Treatment

The application of the concept of three-dimensional technology, energy + pulse width + pulse waveform, has ensured the steady and balanced output of the total pulse energy, which is the sixth breakthrough of photon technology. One OPT treatment effect is equivalent to five times of the traditional photon therapy.

• Security: Single pulse of OPT (Optimal Pulse Technology) delivers balanced energy,avoiding epidermis burning.
• Effectiveness: Avoid the ineffectiveness caused by the attenuation of terminal pulse energy, lengthening pulse duration of OPT and improving its clinical efficacy.
• Reproducibility: Reproduce the uniform distribution of "square wave" and keep good treatment repeatability.
• Comfortability: With 10Hz sliding hair removal and cooling technology, it makes hair removal virtually painless and ensures the effect of treatment.
• High-efficiency: OPT offers you optimal treatment with higher quality and lower cost.

Application

• Wrinkle reduction: Remove shallow, moderate or severe wrinkles, shrink pores, improve skin texture and enhance skin elasticity.
• Skin rejuvenation: Shrink pores, improve skin texture, enhance skin elasticity and repair the acne scar.
• Painless hair removal: Pmise OPT Laser is perfect in removing the light hair and safer for the dark-skinned, thus greatly increasing the people adopting this technology.
• Skin pigmentosus lesions therapy: Freckle, freckle-like nevus (sunspots), seborrheic keratosis (senile plaques), spot nevus and pigmentation after inflammation.
• Vascular lesions therapy: Redness, facial or chest flushing, hemangioma, port wine stains and varicose veins less than 3mm.
• Acne therapy: Because of OPT Laser's special contraction to sebaceous glands, it's the preferred method for treating acne when combined with PMS-850 water oxygen therapy apparatus.

Advantage

1. Applying the most advanced OPT technology, Pmise OPT Laser is equiped with the adsorbable and sliding hair removal handpiece.

2. Furthermore, it makes hair removal efficient, safe, painless and low cost. It can completely remove the tiny hair, and greatly enhance the efficacy of acne removing, whitening, tightening pores and so on.

3. It is also excellent in the removal of epidermal spots-like pigment, such as freckles and freckles-like moles.

4. All in all, it boasts of its optimized performance, excellent efficacy, more comfortable treatment, ultra-long working hours and near-zero failure rate.

5. One curative effect is more than five times of the other.

Specification

	Pmise-L01	Pmise-L04	Pmise-L05
Wave Length	530-1200nm  640-1200nm(Option)	530-1200nm  640-1200nm(Option)	530-1200nm  640-1200nm
Energy Density	1-50J/cm2	1-50J/cm2	1-50J/cm2
Spot Size	8*40mm 10*50mm(Option for Hair Removal)	8*40mm 10*50mm(Option for Hair Removal)	8*40mm(Skin Rejuvenation) 10*50mm(Option for Hair Removal) 8*40mm(Vacuum)
Pulse Width	1-9.9ms	1-9.9ms	1-9.9ms
Pulse Delay	1-99ms	1-99ms	1-99ms
Frequency	1-10hz	1-10hz	1-10hz
Operating Mode	SHR(Super Hair Removal), SR(Skin Rejuvenation)	SHR(Super Hair Removal), SR(Skin Rejuvenation)	SHR(Super Hair Removal), SR(Skin Rejuvenation), Vacuum
Cooling System	Air＋Semiconductor Cooling System＋Water	Air＋Semiconductor Cooling System＋Water	Air＋Semiconductor Cooling System＋Water
Size	35*42*115cm	45*42*52cm	35*42*115cm
Weight	62Kg	35Kg	65Kg
Power Supply	110 230V, 10A, 5OHz	110 230V, 10A, 5OHz	110 230V, 10A, 5OHz
Safety Controller	Automatic Self-Checking and Alarm System	Automatic Self-Checking and Alarm System	Automatic Self-Checking and Alarm System
Remark	1 Handpiece (Change Filter) or 2 Handpieces	Portable, 1 Handpiece (Change Filter)	Vacuum, 3 Handpieces

Technology

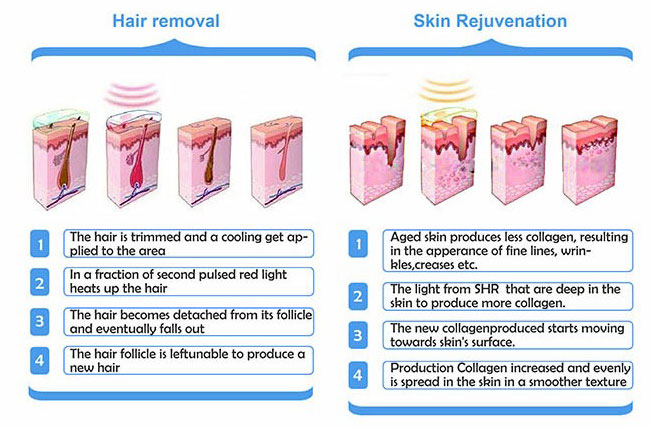

Designed for fast and effective hair removal on all skin types –-- both light skin hair removal and dark skin hair removal.

Wavelength: 640-1200nm, Spot Size:10*50mm

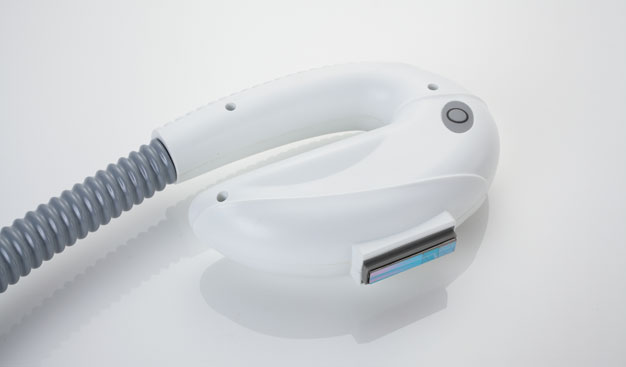

A fast, versatile hand piece designed for skin rejuvenation, pigmented lesion removal, , mild to moderate inflammatory acne and vascular lesion removal

Wavelength: 530-1200nm, Spot Size:8*40mm



Pmise IPL required an advanced cooling technology that cools the skin during treatment for longer periods of time. The ICE tech cold sapphire tip minimizes the risk of burns on the skin surface while maintaining heat within the dermis where hair follicles are treated. Contact Cooling increases patient comfort, making treatments more enjoyable than ever before. Pmise IPL is a modular multi-application platform for the treatment of Multiple skin conditions and hair removal.



IPL With Optimal Pulse Technology (OPT) The optimal way to broaden a patient base, comfortably.

OPT technology can guarantee that the peak energy of each pulse of the output is the same, otherwise it will cause the pulse peak energy to decay.

Clinical significance of OPT technology:

1, Reduce the pain during surgery

2, Avoiding postoperative complications

3, Instrument operation is easy to implement

4, Increase the safety of treatment
